Products

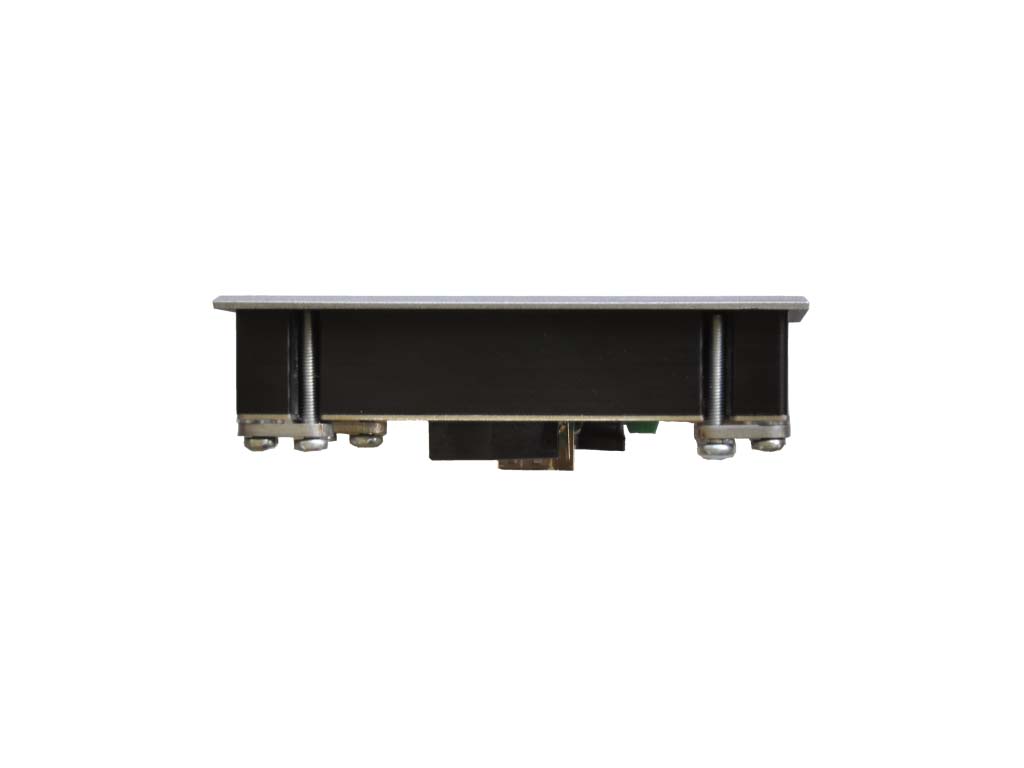

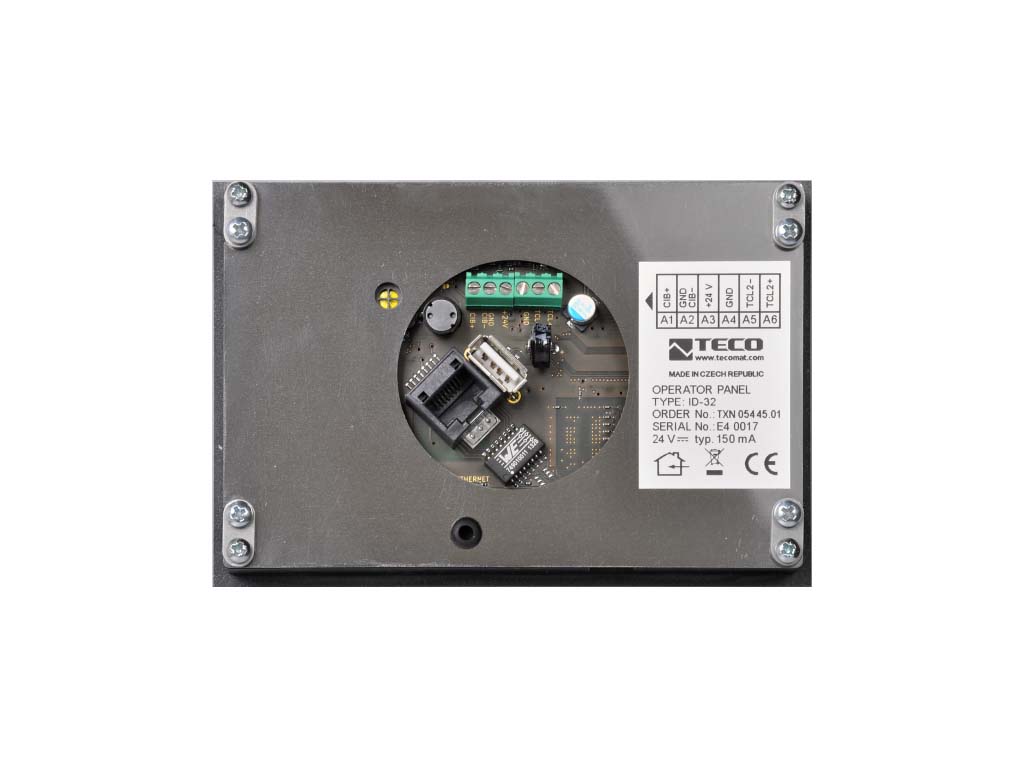

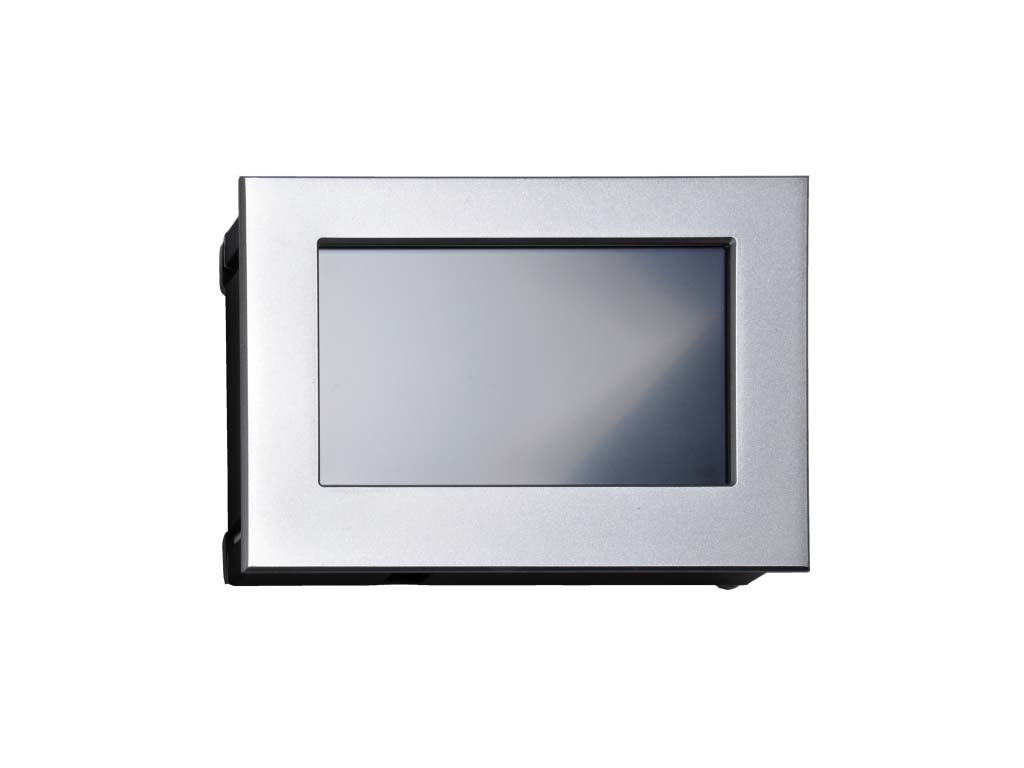

ID-32, Build-in resistive touch panel
SKU: TXN 054 45.00
| Display | 480x272 px |
| Klavesnice | Touch capacitive screen |
| I/O | |
| Napájení | 24 V DC, PoE |
| COM | 100Mbit Ethernet (RJ-45), RS-485 |
| Design | Assembly in the door of the cabinet, to be ordered together with a frame, the color of which is optional. |
| Připojení | Built-in Microbrowser for fast access to internal Web pages of Foxtrot and TC700 central modules. |
TXN 054 45 ID-32, touch panel mounting, 4.3 "TFT 480x272 pxl, Ethernet 10 / 100Base, RS-485, to be assembled with TXF 251 03.xx
TXF 251 03.00 Front frame for ID-32, gray (Light Charcoal)
TXF 251 03.01 Front frame for ID-32, white
TXF 251 03.02 Front frame for ID-32, aluminum
TXF 251 03.03 Front frame for ID-32, anthracite
Základní dokumentace ID-31/Basic documentation ID-31
[pdf, 541 kB]
Firmware ID-31/32 v7.2
[tgz, 38 MB]
Firmware ID-31/32 - změny
[txt, 21 kB]
