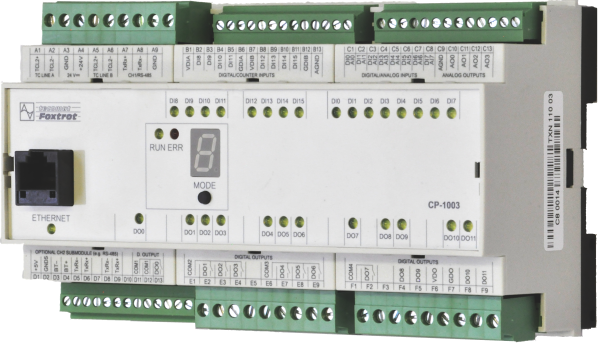

CP-1003
SKU: TXN 110 03
| DI | 8, 5V/12V/24V, High speed inputs 100kHz |
| DO | 12, 8x Relay, (1x16A) 4x DO (24V, High speed outputs 100kHz) |
| AI | 8, AI/DI; 4-20mA;0-10V, RTD; individually configurable also as DI (24 V DC) |
| AO | 4 |
| COM | 1x Eth 100, 2-4x Serial ports, 2x TCL2 system bus |
| Design | 9 modules on DIN rail |
| Connection | removable connectors |
CP-1003, CPU, ETH100/10, 1×RS-485, optional 1×SCH, 8×AI/DI, 8x DI/HSC, 4×AO, 8×RO, 4×DO, 2xTCL2, 384KB program memory, 192KB variables memory, 512 KB DataBox, SD/MMMC slot
Základní dokumentace / Basic documentation - CP-1003
[pdf, 1010 kB]
CE Declaration - Foxtrot, EU Declaration of conformity
[pdf, 608 kB]
Designer's manual for Foxtrot, CFox, RFox systems
[pdf, 27 MB]
Tecomat Foxtrot catalogue 2020
[pdf, 13 MB]
