Control system of the gas boiler room and HVAC systems at an electron microscope assembly plant in Brno
Reference
- Country: Czech Republic
- Name: Control system of the gas boiler room and HVAC systems at an electron microscope assembly plant in Brno
- Implemented by: Technoglobal CZ, s.r.o., GEOVAP spol. s r.o.
- Date: 2011
- Control system: 2x Tecomat Foxtrot CP-1008
- Software: 1x Reliance Control Server 500 with data points, 2x Reliance 4 Web Client, 1x Reliance 4 Mobile Client

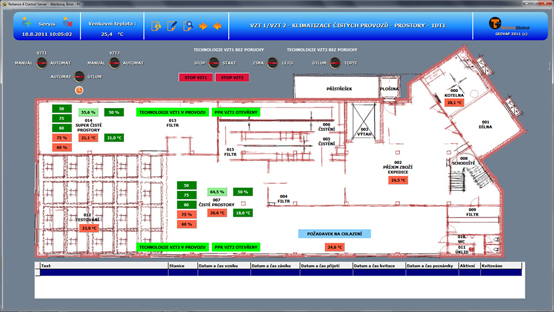

The AŽD Praha company is a significant Czech producer and supplier of signaling, telecommunication, information and automation technologies. It is mainly focused on the rail and road transport field including telematics and other technologies (quotation from the AŽD Praha website). During July and August 2011, a control and visualization system was implemented at a newly built electron microscope assembly plant in Brno. The system is designed to control and monitor the plant's gas boiler room and HVAC systems.
Control system

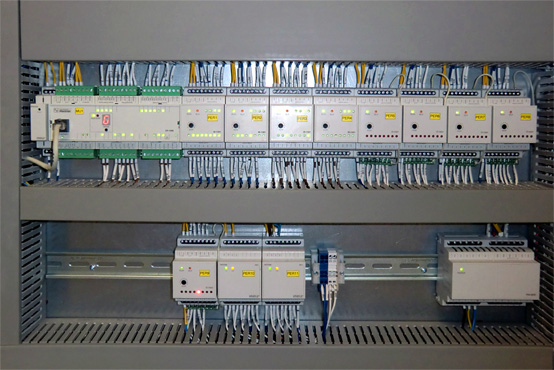

The control system consists of two PLCs. One is used to control the operation of the gas boilers. It is installed in the gas boiler room's switchboard. The other PLC is used to control the HVAC system. It is installed in a switchboard located in the technical mezzanine. Both controllers communicate with each other via PLCNet.
The full reference you may read at www.reliance.cz.
