Control system of a luxury family house in Bratislava, Slovakia

Reference

  • Country: Slovakia
  • Name: Complete control system and visualization of a luxury family house
  • Implemented by: S&V ProIB
  • Date: 2009 - 2010
  • Control System: Central Unit iNELS CU2-01M
  • Software: Mosaic Development Environment, 1x Reliance 4 Control Server with 500 data points

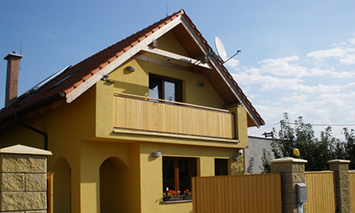

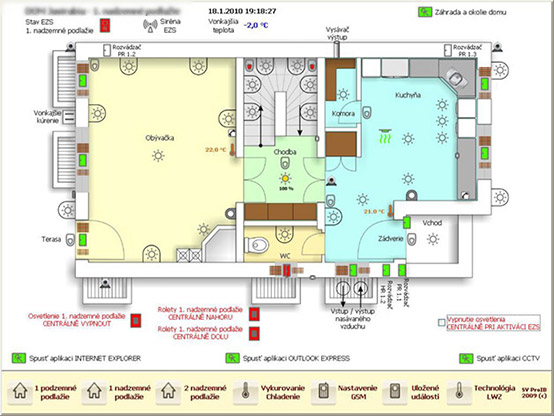

At the end of the year 2009, the construction of a new luxury family house in the city of Bratislava, Slovakia was finished. The wiring in the house is based on the Foxtrot intelligent electrical installation system. The main distribution box contains the Tecomat Foxtrot CP-1004 PLC. The two secondary distribution boxes contain the peripheral I/O devices of the iNELS system. The visualization is displayed on the 15" LCD touchscreen located on the wall in the dining room.

The full reference you may read at www.reliance.cz.
