Control system of standardized family house Ecomodula - France
Reference
- Country: France
- Name: Control system of standardized family house Ecomodula - France
- Implemented by: SUP-TECHNIK, spol. s r.o.
- Date: 2012
- Control system: Tecomat Foxtrot CP-1000
- Software: Mosaic
Companies SUP-TECHNIK and Insight Home has joined and created new concept for home automation - Smart Switchboard. It is standardized house and flat switchboard, delivered in few sizes for various installations. It contains technologies for high and low current house wires including modules for protection of the whole electrical installation. It also contains TV and satellite wires, data network including preset wi-fi router and backed up data storage.

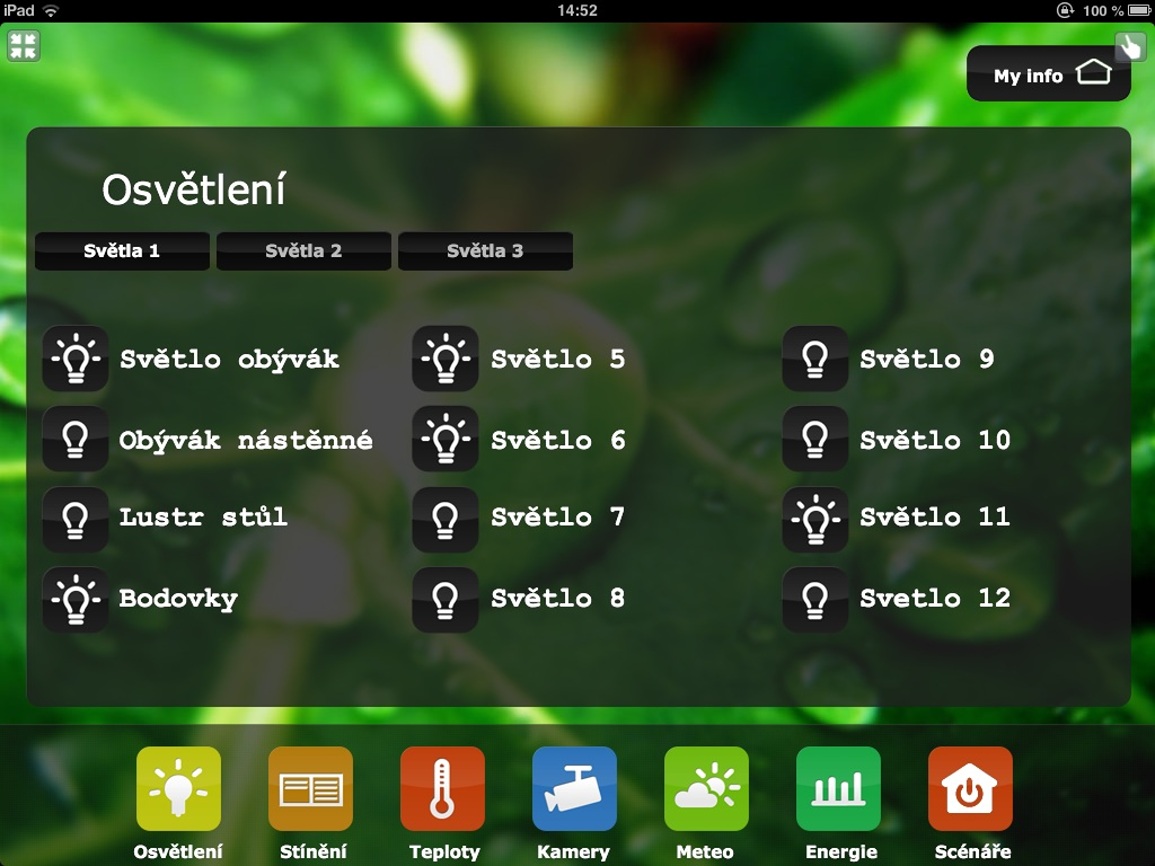

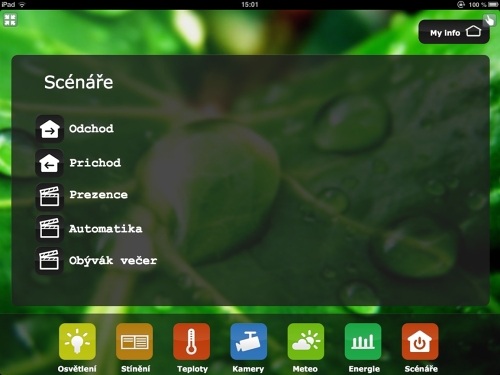

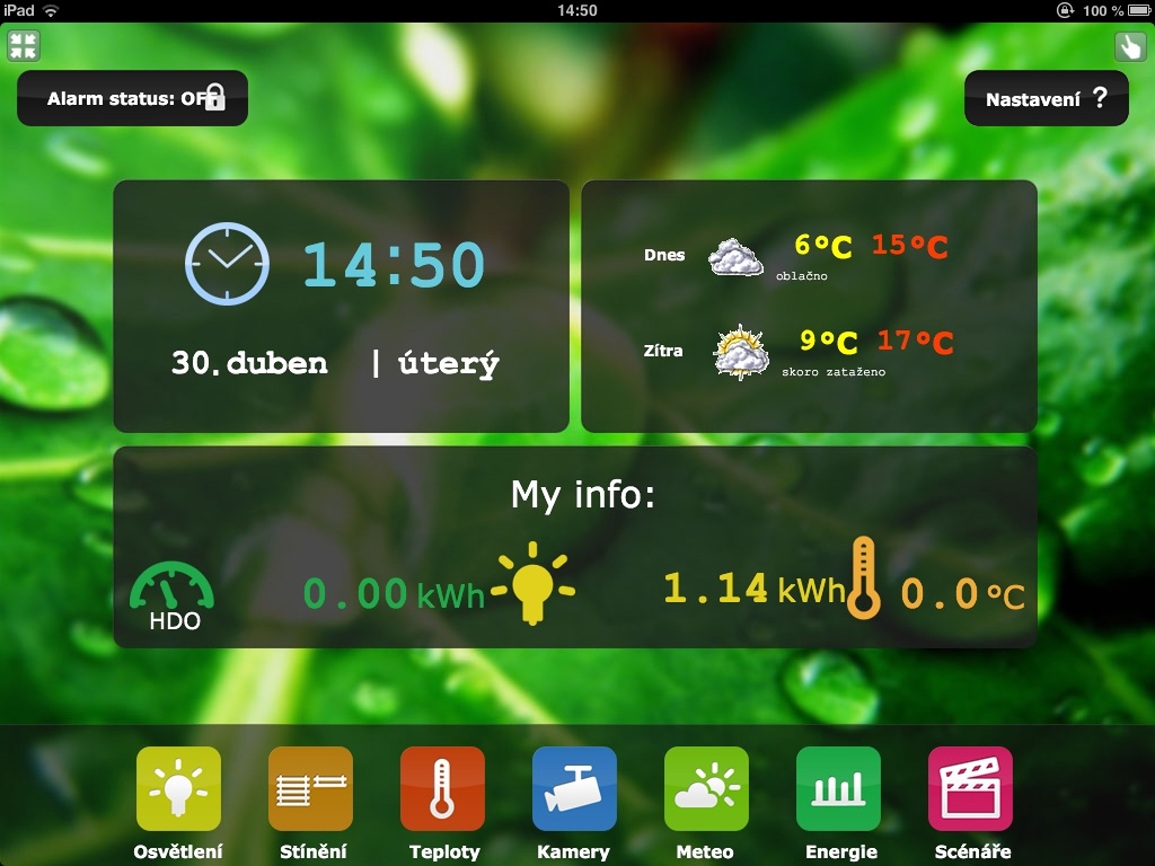

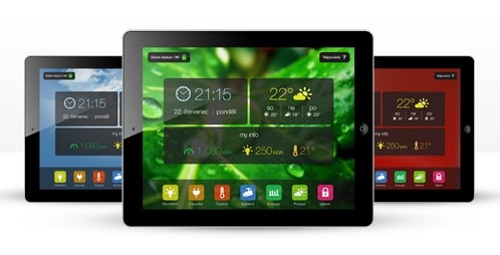

The intelligence is provided by control system Tecomat Foxtrot, here used for comfortable control of lights, jalousies, heating and other devices, certified electronic security system, camera system and multimedia system with recording. All included technologies are ready to use by user immediately after connection from modern visualization via tablets, smart phones and even remotely. And more over: user may creates his own scenes, temperature modes and other parameters of the system.
Existing way of smart house realization is based on individual, non-repeatable solution of each installation. Smart Switchboard uses the same technologies as tailor-made applied intelligent house, but it is delivered as fully connected and fully programmed. That´s why the whole implementation of intelligent house may be done by ordinary electrician or electrical company, who aren´t specialised into smart houses.
User - end costumer may save a lot of money for project preparation and programming.
Standardized home automation system is expanding to France

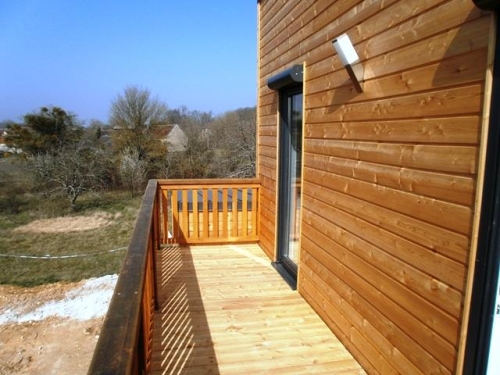

One of the first references of Smart Switchboard is family house ECOMODULA MODULA 134 in France, that is designated for living of 4 - 6 residents and is separated into 2 flat units.

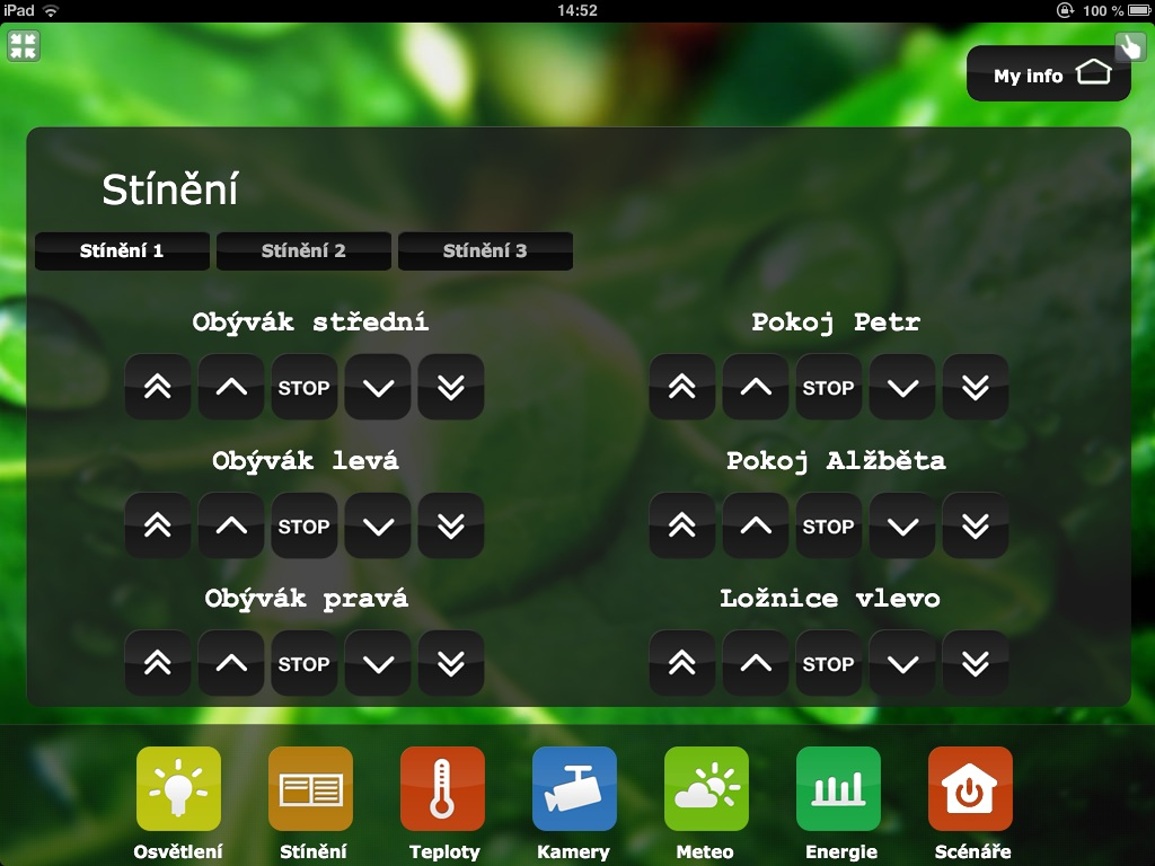

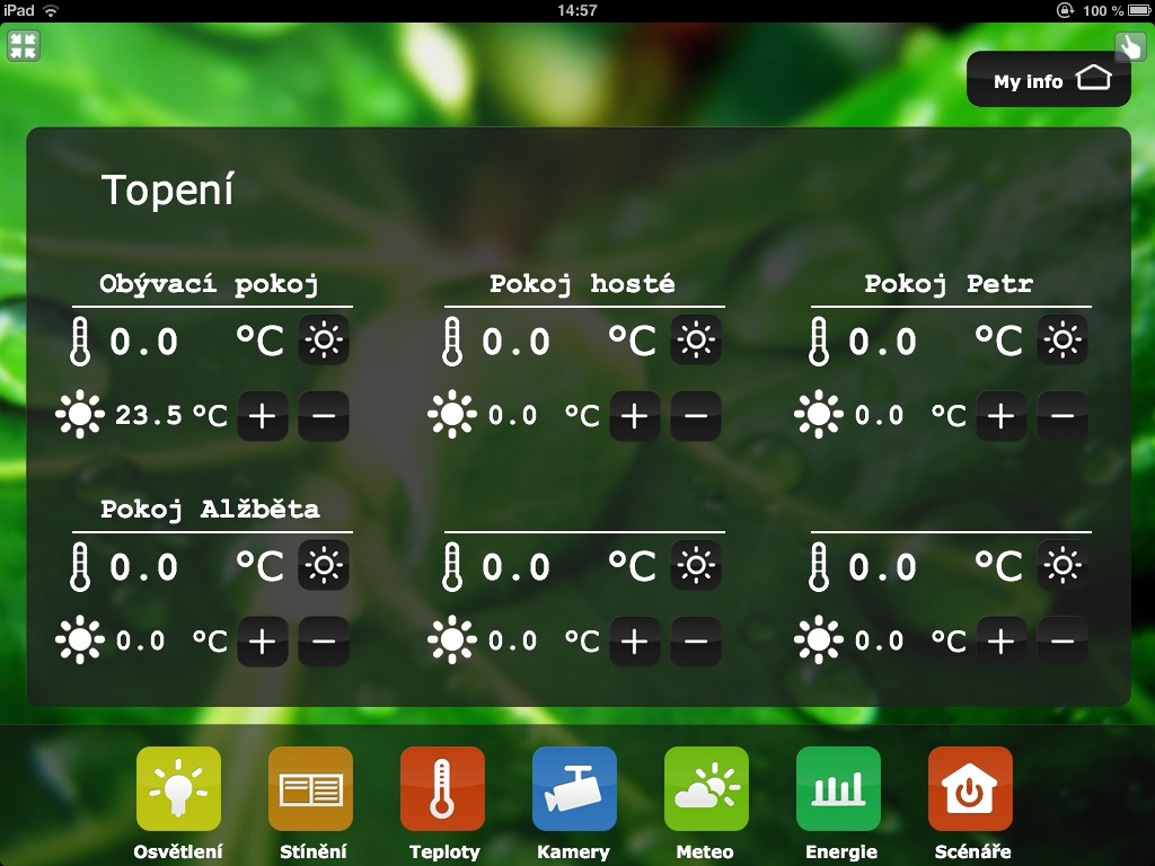

Smart switchboard - type TRE, equipped by Tecomat Foxtrot, here controls following: lights control, exterior blinds, floor heating, wi-fi and alarm security system, all even from iPad and tablets. It also measures energy consumption of both independent flat units.
